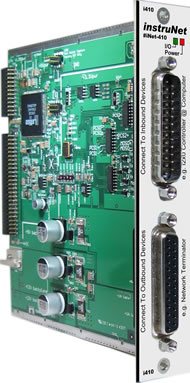

The i410 card connects an i4xx Card Cage to a Windows computer via an instruNet i240 USB, i200 PCI or i230 PCMCIA controller card. The i410 plugs into the left-most slot (slot #1) of an i4xx Card cage. One and only one i410 is required per i4xx card cage when working with i2x0 controllers. The i410 provides the following features:

• Two Db25 connectors allow daisy-chaining multiple i4xx Card Cage and i100 devices to one i2x0 controller card.
• Front panel red power light shows presence of 5V, 12V, and -12V power.
• Front panel green I/O light blinks when computer communicates with card cage.
• Includes one Db25 Male to Female 3 meter (10ft) Cable.
