INSTRUNET i555 STARTER SYSTEM
PRODUCT LIST > STARTER KITS >

Features

• Usb 2.0 High Speed Data Acquisition Hardware for Windows ≥ Xp Sp2, Vista or 7 (Xp/Vs/7)
• instruNet Software
• 16se/8di Voltage Inputs with 16-bit A/D Converter
• 2x Precision Voltage Outputs (±10V, 14bit D/A)
• 2x Voltage Outputs (0..+10V, 8bit D/A)
• 4x Universal Digital I/O (20mA sink, -10V..30V)
• Connect Directly To Sensors: Voltage,  Thermocouple,  Thermistor,  RTD,  Load Cell,  Strain Gage,  Potentiometer,  Current,  Resistance
• Easily expand via 2 free slots in 4 slot i4xx Card Cage
• The i555 includes the following products: i240, i430, i510, i400, i410, i312.

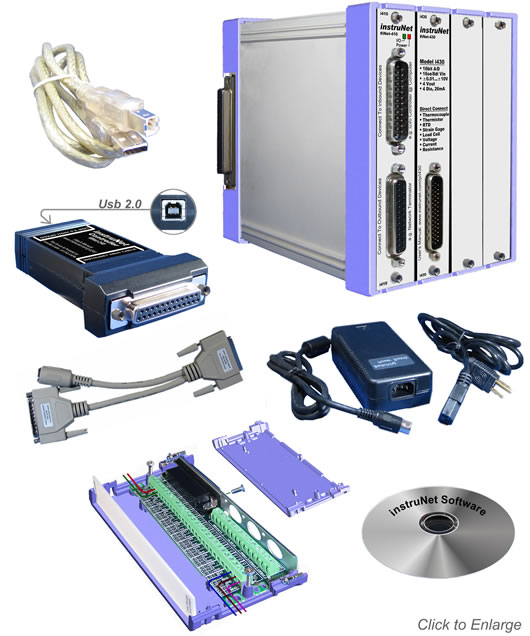

• #iNet-555 is pictured below, click to enlarge.

What's In The Box

The #iNet-555 instruNet Starter System includes the following items:

• i240 USB instruNet Controller (USB Cable, instruNet software)
• i400 Card Cage for i4xx Cards
• i410 Card (Interface between i2x0 controller and i4xx card cage)
• i430 Card (16bit A/D, 16se/8di vin, mux, 4 vout, 4 digital i/o)
• i510 Wiring Box with Screw Terminals
• i312 Power Supply (includes i300 cable, USA power coord)

The #iNet-555.eu system is the same as above, yet includes a European power cord instead of USA.

The i555 Starter System does not include an instruNet Db25 Terminator and does not include a 10ft (3m) Db25 Cable since the i240 Controller is placed close to the i4xx Card Cage and the Usb Cable provides a 10ft (3m) separation between computer and system.

The i555 is sold as a kit and one cannot substitute items within the kit for other items. For example, if one wanted an i512 bnc wiring box instead of the i510 wiring box included with the i555, they would need to purchase the i512 separately.
